Fonction :
The AR drone is a civil drone, we can use it for the hobbies to enjoy and have a good landscape vision with the camera.
features :
Type : Multirotor
Builder : Parrot
Marketing : AR Drone -> august 2010
AR Drone 2.0 january 2012
Controlled by smartphone/tablet AR.FreeFlight 2.4.15
Motor : - Inrunner 14.5W 28.500 tr/min
- 4
- electric
- autonomie 12 minutes battery LiPo 1.000 mAh
RAM : 1Go
Wired Connection: 1 port USB 2
Wireless Connection: Wifi b / G / n
Sensors : 3-axis gyroscope with accuracy 2,000 degrees per second, 3-axis accelerometer with accuracy plus or minus 50mG, 3-axis magnetometer with precision 6 degrees, Pressure sensor with accuracy plus or less 10 Pa (80cm at sea level), Ultrasonic sensor To measure altitude, QVGA vertical camera at 60 fps to measure ground speed, and GPS sensor to register the speed.
Maximum speed : 18km/h
Wingspan : 45 cm
Length : 29 cm
Mass with battery : 380g
Embedded camera : 1280 * 720 pixel

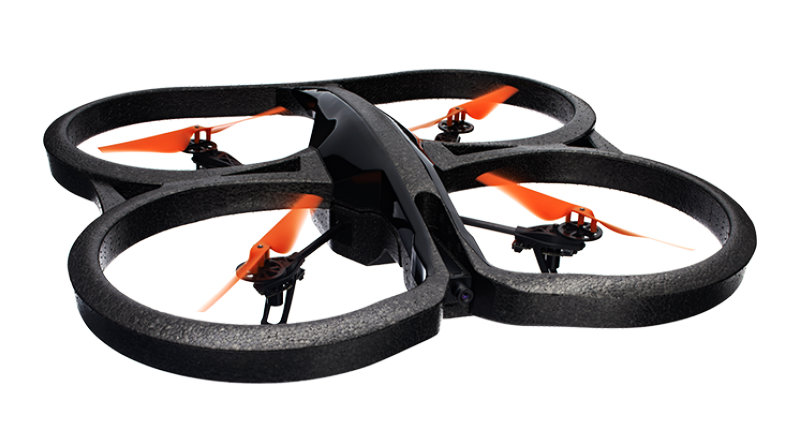

Composition AR. Drone 2.0
The Parrot drone is composed of a quadricopter, protective shells but also a case that records GPS coordinates, altitude, speed and inclination.
The drone is also equipped with 2 cameras, one in front of the drone which films in HD 720P and under the drone filming in 640 x 480
Position :
There are 4 motors located under the 4 propellers. The 4 propellers are located at the four extremities of the drone. There is a battery under the drone.
Connection between part :
The different parts of the drone are linked by plastic bonds.
The motors are linked to propellers by wires.
Plastic Bonds
Lanscape vision
Propellers
Accuracy
Wired connexion
ground speed
protective shells
liaisons plastique
vue du paysage
hélices
exactitude
connexion filaire
vitesse au sol
coques de protection
